Kafka vs RabbitMQ

• RabbitMQ
• Kafka
• RabbitMQ Architecture
• Kafka Architecture
• Use cases
• References

RabbitMQ

• supports :
  • AMQP : Advanced Message Queuing Protocol
  • MQTT : MQ Telemetry Protocol
  • STOMP : Streaming Text Oriented Messaging Protocol
• is known as a hybrid broker
• uses smart broker/dumb consumer model

Kafka

• provides higher throughput, built-in partitioning, replication, and inherent fault-tolerance

There are 2 async messagin patterns :

1. Message Queue

   • a creating app sends a msg to queue. When the consuming app is ready, it just connects to the queue and retrieves the msg, removing it from the queue.
   • several consuming apps can exist, each message is only consumed by one.

2. Publish/Subscribe (pub/sub)

   • allows producers to publish msg’s which can be consumed by multiple consumer.
   • if consuming apps are interested, they just subscribe to a channel
   • used when a msg or event must trigger several actions
   • unlike the message queue, pub/sub assures that consuming apps rcv msg’s in the same order as messaging system received them.

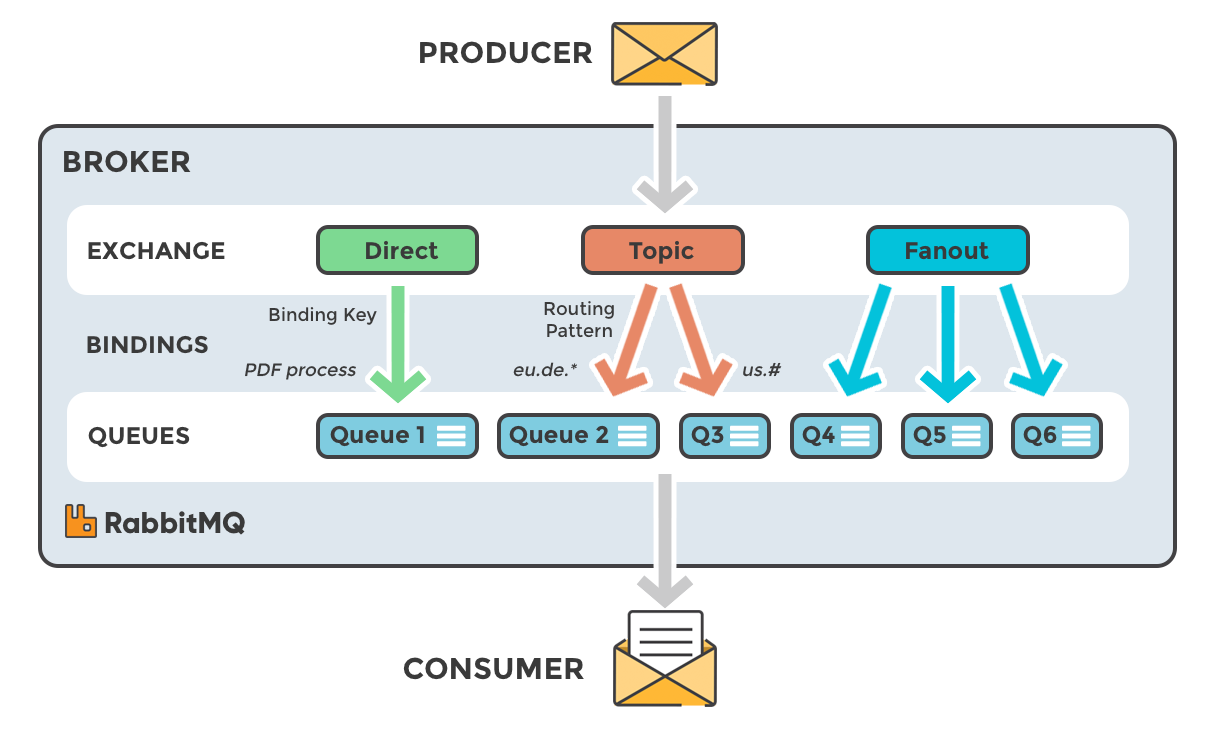

RabbitMQ Architecture

• consists of
  • producers
  • exchanges
  • queues
  • consumers

                            queues
           msg              |---->
 producer -----> exchange --|----> consumers
                            |---->
                          or other
                           exchanges

• queue is a sequential data structure:
  • producers add to the end
  • consumers get data from the top
  • FIFO
• msg exchange determines routing
  • 4 exchange types:

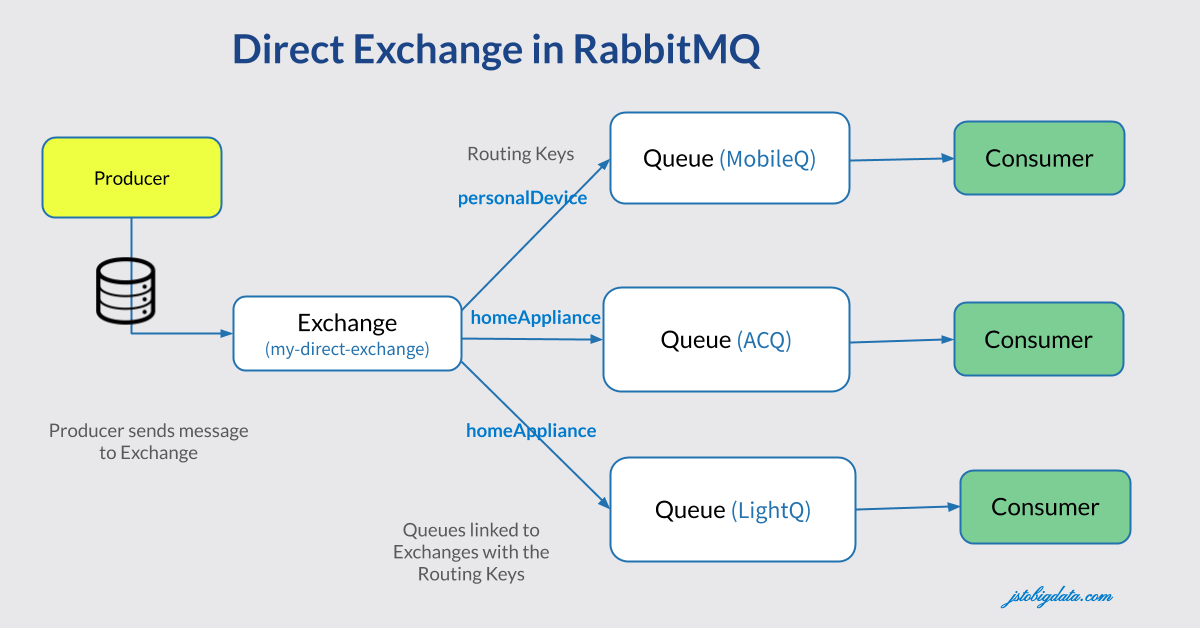

    • direct
      • can directly target msg’s to a particular queue

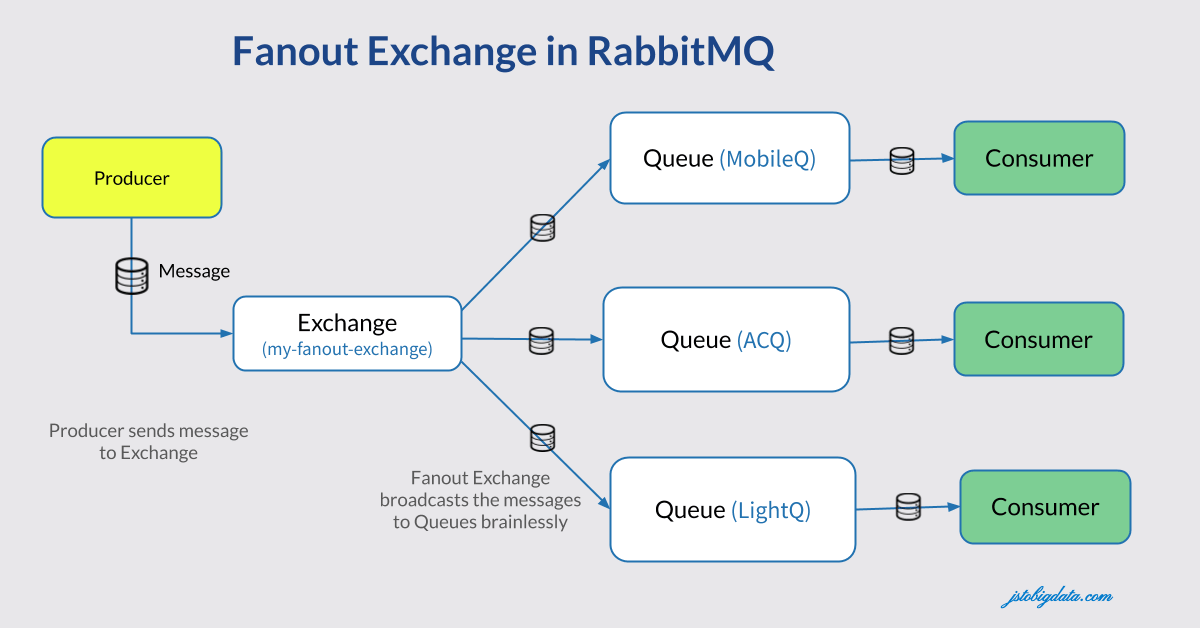

    • fanout
      • route msg’s to all available queues



    • topic
    • header

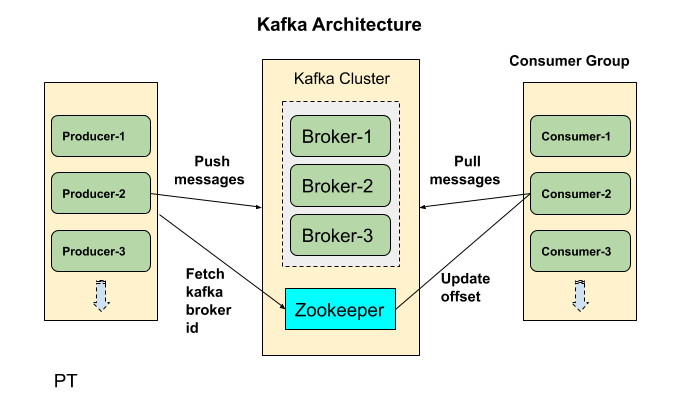

Kafka Architecture

• consists of
  • producers
  • consumers
  • clusters
  • brokers
  • topics
  • partitions

producer --------> cluster -------> consumer

Use cases

• Rabbit MQ
  • complex routing - route msg’s among miltiple consuming apps, such as in a microservice architecture
  • legacy applications

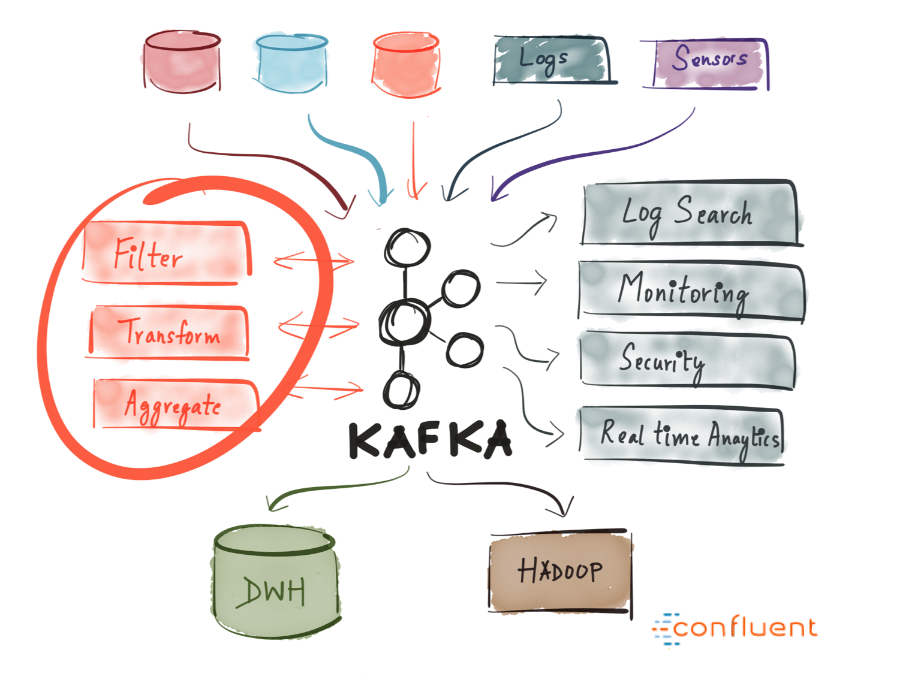

• Kafka
  • high-troughput activity tracking
  • stream processing
  • event sourcing
  • log aggregation
